3/4" 4-Flute Solid Carbide Square End Mill - RobbJack NR-404-24

RobbJack

3/4" 4-Flute Solid Carbide Square End Mill - RobbJack NR-404-24

MFR# NR-404-24Series NR-404

$334.32List $363.91 Save 8%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide

Description

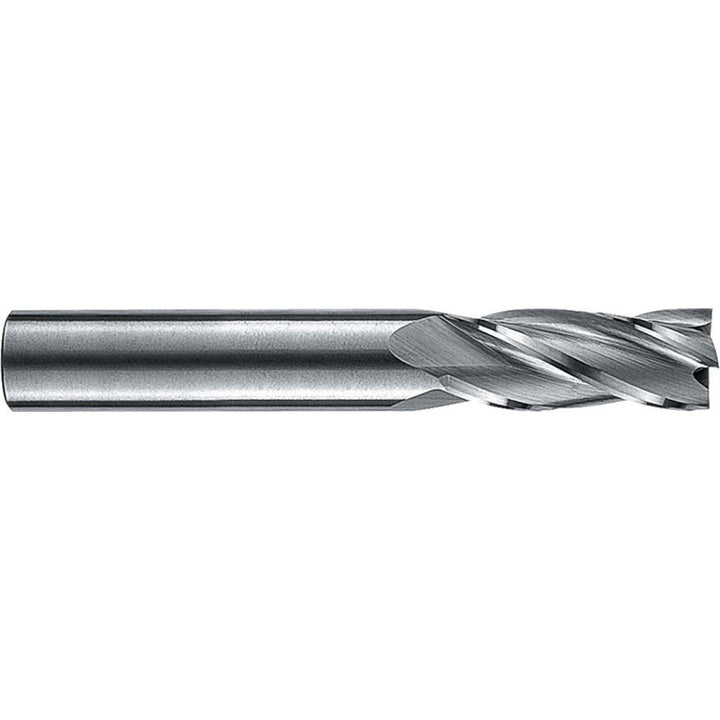

The RobbJack NR-404-24 is a 3/4 4-flute Solid Carbide (C2) square end mill. 1-1/2 length of cut, 4 overall length. Series NR-404.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/2
Length typeRegular
Material gradeC2
Mill diameter in3/4
Mill diameter tolerance+0.001/-0.000 in
Number of flutes4
Overall length in4
Overall length tolerance+0.060/-0.060 in
Shank diameter in3/4
Shank diameter tolerance-0.0001/-0.0002 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
