1/2" 2-Flute Solid Carbide Square End Mill - RobbJack S1-201-16

RobbJack

1/2" 2-Flute Solid Carbide Square End Mill - RobbJack S1-201-16

MFR# S1-201-16Series S1-201

$98.31List $106.88 Save 8%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes2
MaterialSolid Carbide

Description

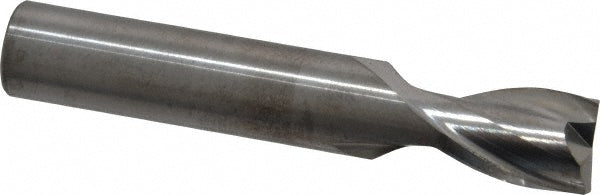

The RobbJack S1-201-16 is a 1/2 2-flute Solid Carbide (C2) square end mill. 5/8 length of cut, 3 overall length. Series S1-201.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length typeStub
Material gradeC2
Mill diameter in1/2
Mill diameter tolerance+0.000/-0.003 in
Number of flutes2
Overall length in3
Overall length tolerance+0.060/-0.060 in
Shank diameter in1/2
Shank diameter tolerance-0.0001/-0.0002 in
Variable helixNo
Variable indexNo
