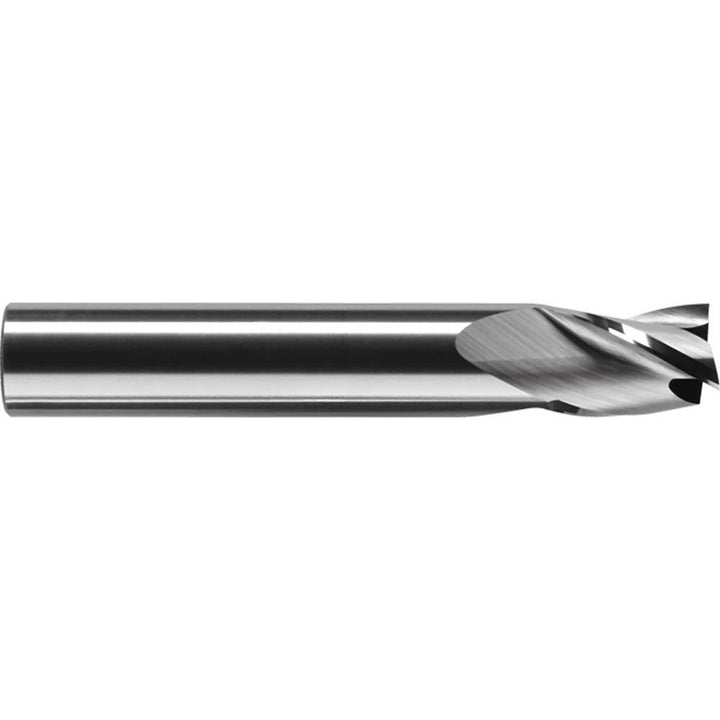

1/8" 3-Flute Solid Carbide Square End Mill - RobbJack S1-301-04

RobbJack

1/8" 3-Flute Solid Carbide Square End Mill - RobbJack S1-301-04

MFR# S1-301-04Series S1-301

$23.67List $25.67 Save 7%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes3
MaterialSolid Carbide

Description

The RobbJack S1-301-04 is a 1/8 3-flute Solid Carbide (C2) square end mill. 1/4 length of cut, 1-1/2 overall length. Series S1-301.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/4
Length typeStub
Material gradeC2
Mill diameter in1/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in1-1/2
Overall length tolerance+0.060/-0.060 in
Shank diameter in1/8
Shank diameter tolerance-0.0001/-0.0002 in
Shank typeStraight-Cylindrical
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Helical Solutions1/8" 3-Flute Solid Carbide Square End Mill - Helical Solutions 01015 $21.85 OSG1/8" 3-Flute Solid Carbide Square End Mill, DLC - OSG 88300009 $43.65 Iscar1/8" 3-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5621041 $40.84 Seco1/8" 3-Flute Solid Carbide Square End Mill, ANF - Seco 10023001 $24.33
