RobbJack

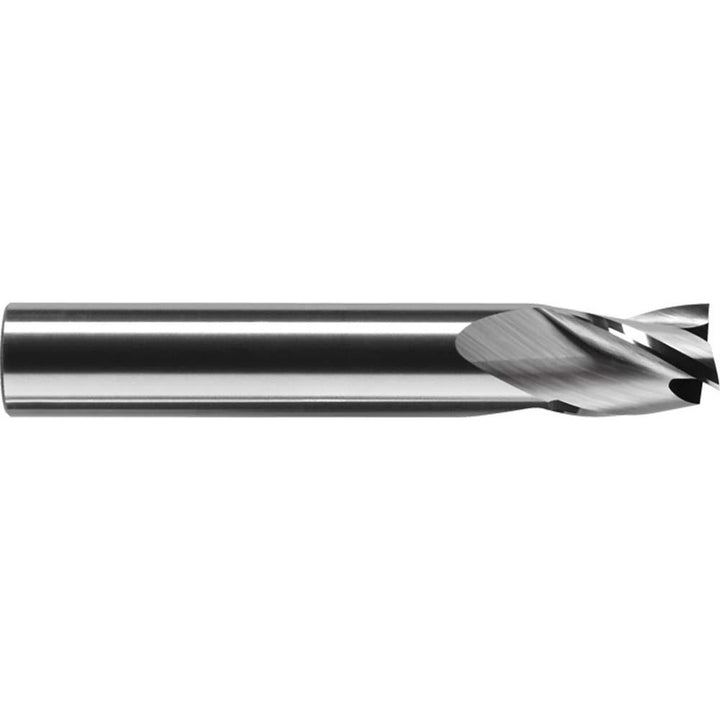

1/4" 3-Flute Solid Carbide Square End Mill - RobbJack S1-301-08
MFR# S1-301-08Series S1-301
$32.31List $35.12
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes3
MaterialSolid Carbide
Description
The RobbJack S1-301-08 is a 1/4 3-flute Solid Carbide (C2) square end mill. 1/2 length of cut, 2 overall length. Series S1-301.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2
Length typeStub
Material gradeC2
Mill diameter in1/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in2
Overall length tolerance+0.060/-0.060 in
Shank diameter in1/4
Shank diameter tolerance-0.0001/-0.0002 in
Shank typeStraight-Cylindrical
