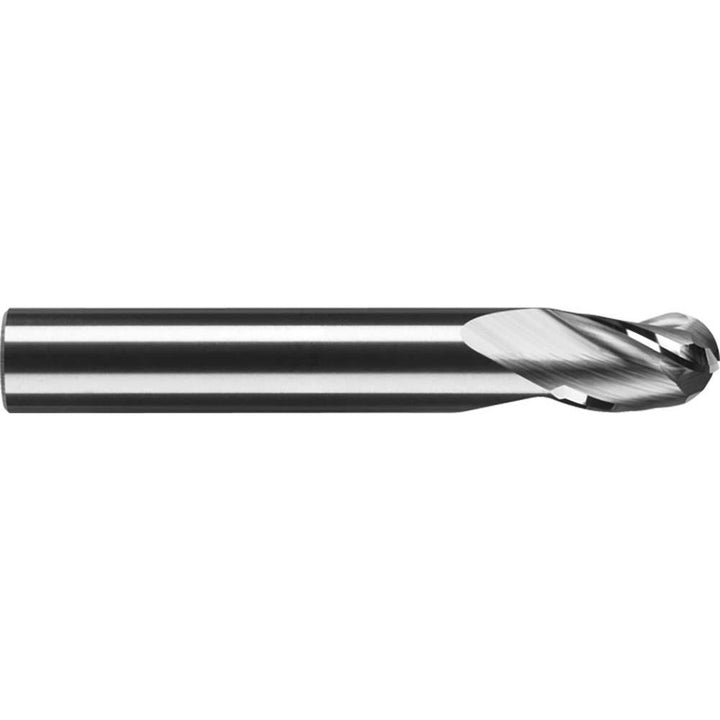

3/16in" 3-Flute Solid Carbide Ball End Mill - RobbJack SB-301-06
MFR# SB-301-06Series SB-301
$43.18List $46.94
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16in
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The RobbJack SB-301-06 is a 3/16in 3-flute Solid Carbide ball end mill. Suited for cast iron, non-ferrous metal. 5/16in length of cut, 2in overall length. Series SB-301.
Specifications
Additional information3 Flute Ball End Stub Length Metric Tuffy Grade Carbide End Mill
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in5/16in
Length typeStub
Manufacturers catalog numberSB-301-06
Material removal typeRoughing & Finishing
Mill diameter in3/16in
Mill diameter tolerance+0.0000/ 0.0020 in
Neck length0.0000
Nose radius0.0938
Number of flutes3
Overall length in2in
Overall length tolerance+0.0600/-0.0600 in
Primary workpiece materialCast Iron; Non-Ferrous Metal
Reach length0.3125
Shank diameter in3/16in
Shank diameter tolerance0.0001/ 0.0002 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
