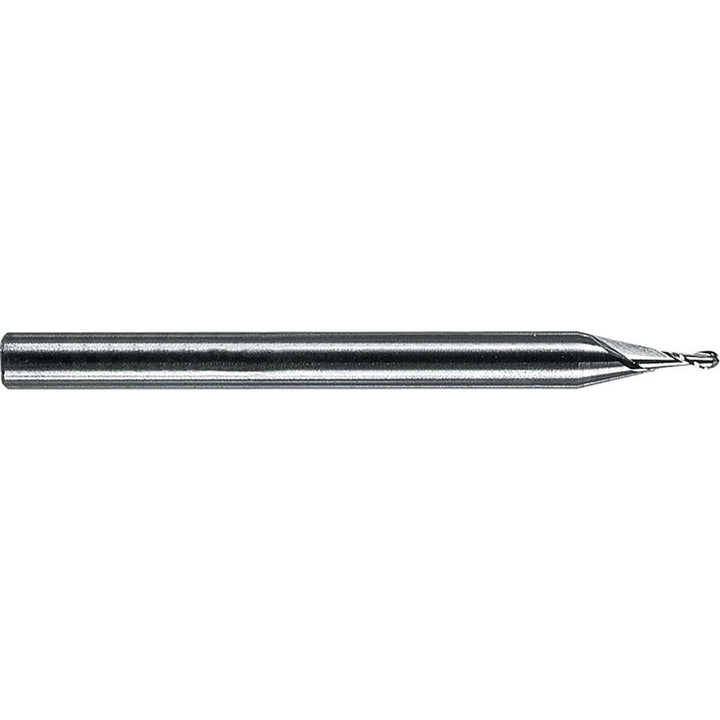

3/64in" 2-Flute Solid Carbide Ball End Mill - RobbJack SR-2-047-BN

RobbJack

3/64in" 2-Flute Solid Carbide Ball End Mill - RobbJack SR-2-047-BN

MFR# SR-2-047-BNSeries SR-2BN

$32.95List $33.31 Save 1%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/64in
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The RobbJack SR-2-047-BN is a 3/64in 2-flute Solid Carbide ball end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 9/64in length of cut, 1-1/2in overall length. Series SR-2BN.

Specifications

Additional information2 Flute Ball End Standard Length Tuffy Grade Miniature End Mill
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in9/64in
Length typeStandard
Manufacturers catalog numberSR-2-047-BN
Material removal typeRoughing & Finishing
Mill diameter in3/64in
Mill diameter tolerance+0.0005/-0.0005 in
Neck length0.0000
Nose radius0.0235
Number of flutes2
Overall length in1-1/2in
Overall length tolerance+0.0600/-0.0600 in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Reach length0.1410
Shank diameter in1/8in
Shank diameter tolerance0.0001/ 0.0002 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
