0.0250in" 2-Flute Solid Carbide Ball End Mill - RobbJack SS-2-025-BN

RobbJack

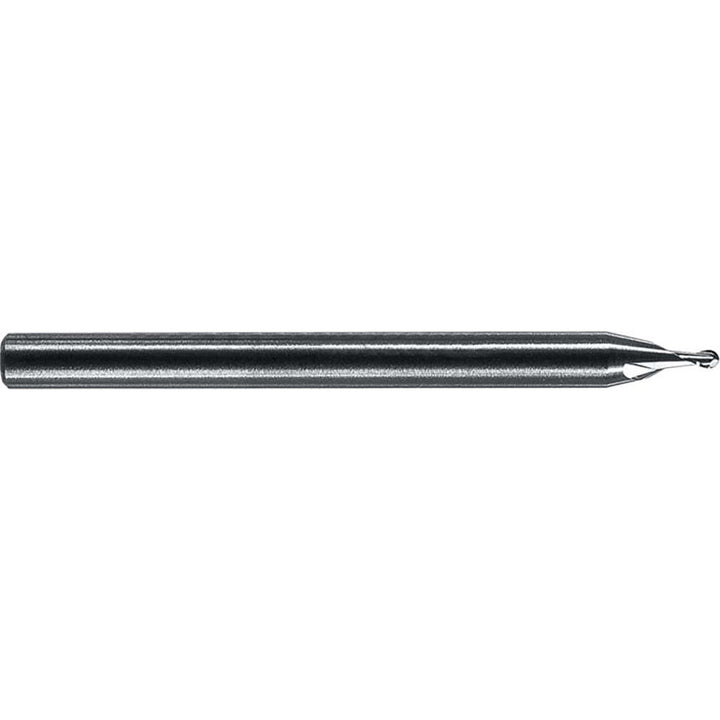

0.0250in" 2-Flute Solid Carbide Ball End Mill - RobbJack SS-2-025-BN

MFR# SS-2-025-BNSeries SS-2BN

$32.37List $35.20 Save 8%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The RobbJack SS-2-025-BN is a 0.0250in 2-flute Solid Carbide ball end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 1-1/2in overall length. Series SS-2BN.

Specifications

Additional information2 Flute Ball End Stub Length Tuffy Grade Miniature End Mill
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length typeStub
Manufacturers catalog numberSS-2-025-BN
Material removal typeRoughing & Finishing
Mill diameter0.0250in
Mill diameter tolerance+0.0005/-0.0005 in
Neck length0.0000
Nose radius0.0125
Number of flutes2
Overall length in1-1/2in
Overall length tolerance+0.0600/-0.0600 in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Reach length0.0375
Shank diameter in1/8in
Shank diameter tolerance0.0001/ 0.0002 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementDecimal Inch
Variable helixNo
Variable indexNo
