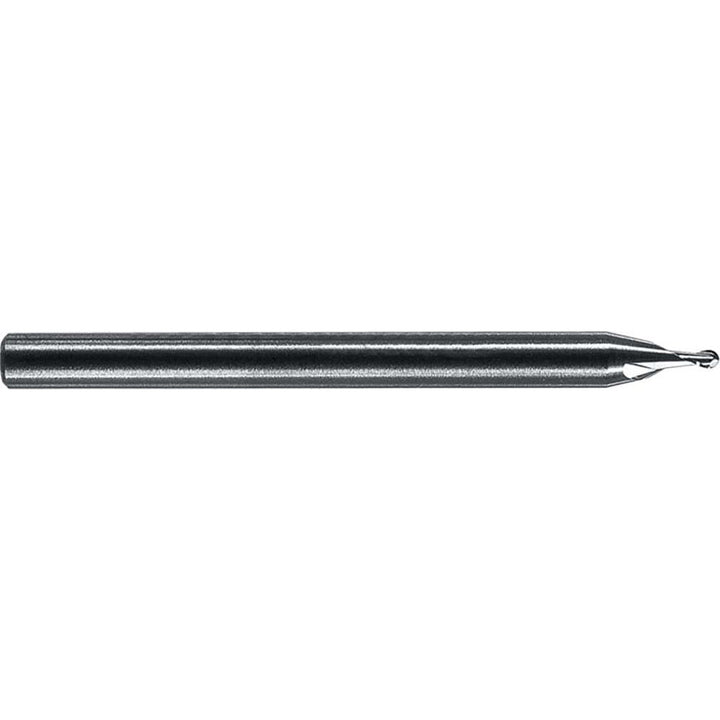

0.0400in" 2-Flute Solid Carbide Ball End Mill - RobbJack SS-2-040-BN

RobbJack

0.0400in" 2-Flute Solid Carbide Ball End Mill - RobbJack SS-2-040-BN

MFR# SS-2-040-BNSeries SS-2BN

$31.42List $31.73 Save 0%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide

Description

The RobbJack SS-2-040-BN is a 0.0400in 2-flute Solid Carbide ball end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 1-1/2in overall length. Series SS-2BN.

Specifications

Additional information2 Flute Ball End Stub Length Tuffy Grade Miniature End Mill
ChipbreakerNo
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length typeStub
Manufacturers catalog numberSS-2-040-BN
Material removal typeRoughing & Finishing
Mill diameter0.0400in
Mill diameter tolerance+0.0005/-0.0005 in
Neck length0.0000
Nose radius0.0200
Number of flutes2
Overall length in1-1/2in
Overall length tolerance+0.0600/-0.0600 in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Reach length0.0600
Shank diameter in1/8in
Shank diameter tolerance0.0001/ 0.0002 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementDecimal Inch
Variable helixNo
Variable indexNo
