RobbJack

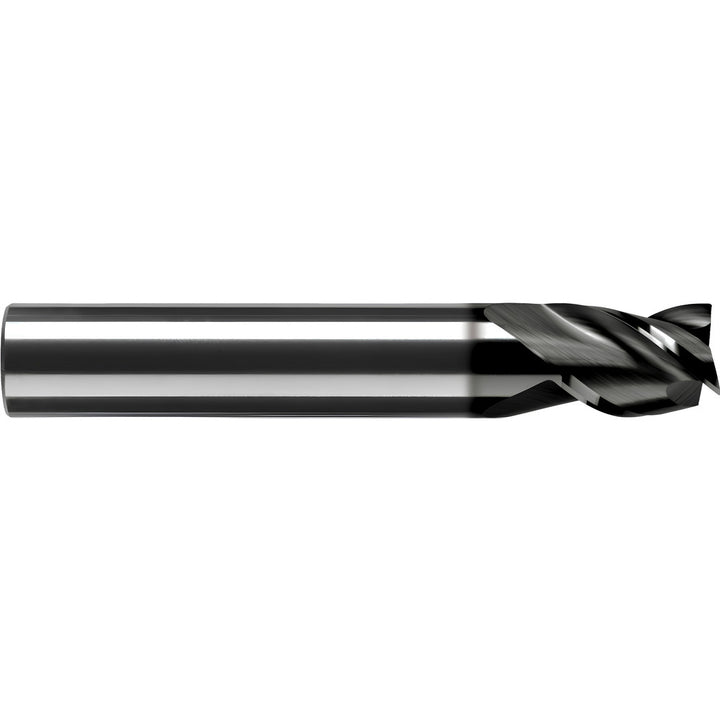

1/8" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - RobbJack ST-341-04-A
MFR# ST-341-04-ASeries ST-341
$36.89
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/8
Flutes3
MaterialSolid Carbide
CoatingAlTiN
Description
The RobbJack ST-341-04-A is a 1/8 3-flute Solid Carbide corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1/4 length of cut, 1-1/2 overall length. Series ST-341.
Specifications
Additional informationSlotting; Side Milling,Helical Interpolation & Ramping
CentercuttingNo
Chamfer angle45
Chamfer length0.0030
Chamfer width0.0030
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle40
Helix styleHigh
Length of cut in1/4
Length typeStub
Manufacturers catalog numberST-341-04-A
Material removal typeRoughing & Finishing
Mill diameter in1/8
Mill diameter tolerance+0.0000 to -0.0020 in
Number of flutes3
Overall length in1-1/2
Overall length tolerance-0.0600 to +0.0600 in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Reach length in1/4
Shank diameter in1/8
Shank diameter tolerance-0.0001 to -0.0002 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
