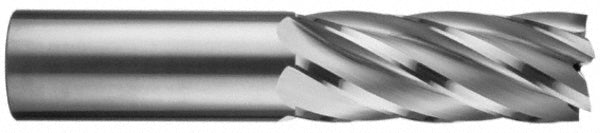

3/4" 6-Flute Solid Carbide Square End Mill, TiN - RobbJack ST-630-24-T

RobbJack

3/4" 6-Flute Solid Carbide Square End Mill, TiN - RobbJack ST-630-24-T

MFR# ST-630-24-TSeries ST-630

$398.98List $435.90 Save 8%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes6
MaterialSolid Carbide
CoatingTiN

Description

The RobbJack ST-630-24-T is a 3/4 6-flute Solid Carbide square end mill. 1-1/2 length of cut, 4 overall length. Series ST-630.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/2
Length typeRegular
Mill diameter in3/4
Mill diameter tolerance+0.001/-0.000 in
Number of flutes6
Overall length in4
Overall length tolerance+0.060/-0.060 in
Shank diameter in3/4
Shank diameter tolerance-0.0001/-0.0002 in
Variable helixNo
Variable indexNo
