5/16" 2-Flute Solid Carbide Square End Mill - RobbJack T12-203-10

RobbJack

5/16" 2-Flute Solid Carbide Square End Mill - RobbJack T12-203-10

MFR# T12-203-10Series T12-203

$87.36List $95.45 Save 8%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes2
MaterialSolid Carbide

Description

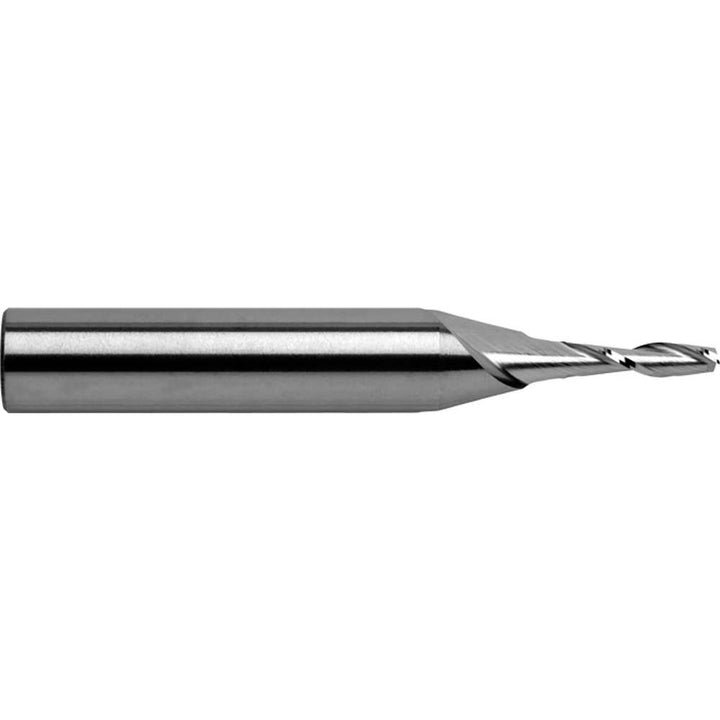

The RobbJack T12-203-10 is a 5/16 2-flute Solid Carbide (Tuffy) square end mill. 13/16 length of cut, 2-1/2 overall length. Series T12-203.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in13/16
Length typeRegular
Material gradeTuffy
Mill diameter in5/16
Mill diameter tolerance+0.001/-0.000 in
Number of flutes2
Overall length in2-1/2
Overall length tolerance+0.060/-0.060 in
Shank diameter in3/8
Shank diameter tolerance-0.0001/-0.0002 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
