1/4" 4-Flute Solid Carbide Square End Mill - RobbJack TR-404-08

RobbJack

1/4" 4-Flute Solid Carbide Square End Mill - RobbJack TR-404-08

MFR# TR-404-08Series TR-404

$48.41List $52.63 Save 8%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide

Description

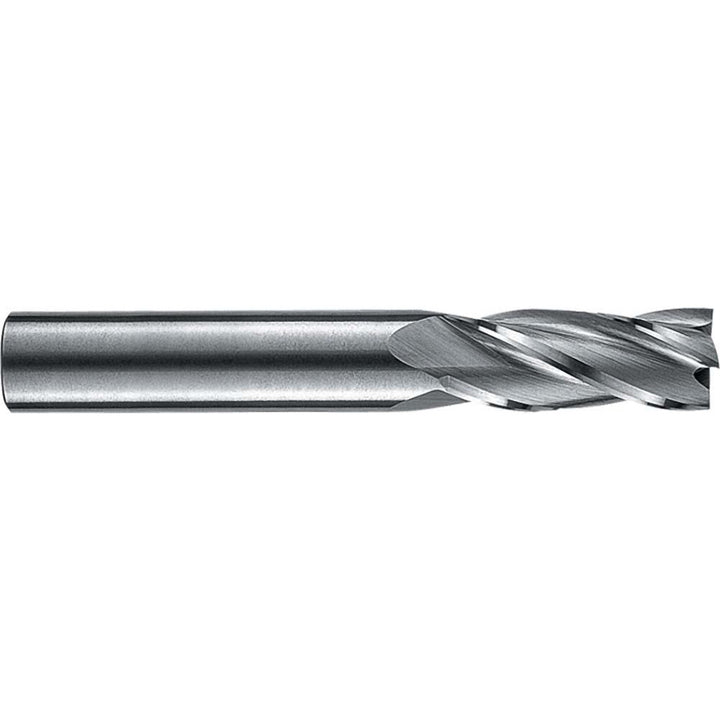

The RobbJack TR-404-08 is a 1/4 4-flute Solid Carbide (Tuffy) square end mill. 3/4 length of cut, 2-1/2 overall length. Series TR-404.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length typeRegular
Material gradeTuffy
Mill diameter in1/4
Mill diameter tolerance+0.001/-0.000 in
Number of flutes4
Overall length in2-1/2
Overall length tolerance+0.060/-0.060 in
Shank diameter in1/4
Shank diameter tolerance-0.0001/-0.0002 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
