5/16" 3-Flute Solid Carbide Square End Mill - RobbJack TS-301-10

RobbJack

5/16" 3-Flute Solid Carbide Square End Mill - RobbJack TS-301-10

MFR# TS-301-10Series TS-301

$51.57List $56.35 Save 8%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes3
MaterialSolid Carbide

Description

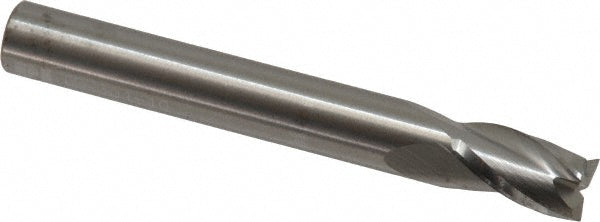

The RobbJack TS-301-10 is a 5/16 3-flute Solid Carbide square end mill. 1/2 length of cut, 2-1/2 overall length. Series TS-301.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2
Length typeStub
Mill diameter in5/16
Mill diameter tolerance+0.000/-0.003 in
Number of flutes3
Overall length in2-1/2
Overall length tolerance+0.060/-0.060 in
Shank diameter in5/16
Shank diameter tolerance-0.0001/-0.0002 in
Variable helixNo
Variable indexNo
