RobbJack
1/16" 4-Flute Solid Carbide Square End Mill - RobbJack TS-401-02
MFR# TS-401-02Series TS-401
$25.62List $27.85
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/16
Flutes4
MaterialSolid Carbide
Description

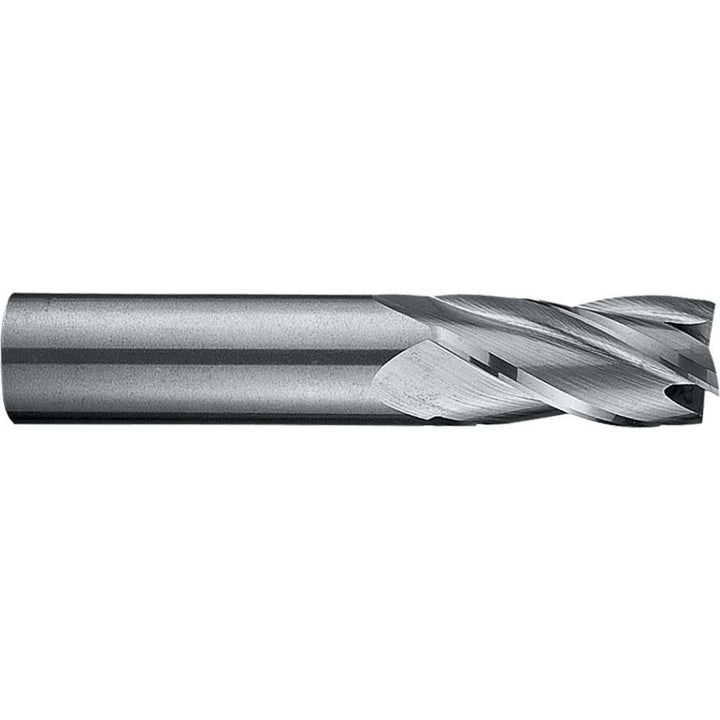

The RobbJack TS-401-02 is a 1/16 4-flute Solid Carbide (Tuffy) square end mill. 1/8 length of cut, 1-1/2 overall length. Series TS-401.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/8
Length typeStub
Material gradeTuffy
Mill diameter in1/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in1-1/2
Overall length tolerance+0.060/-0.060 in
Shank diameter in1/8
Shank diameter tolerance-0.0001/-0.0002 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
