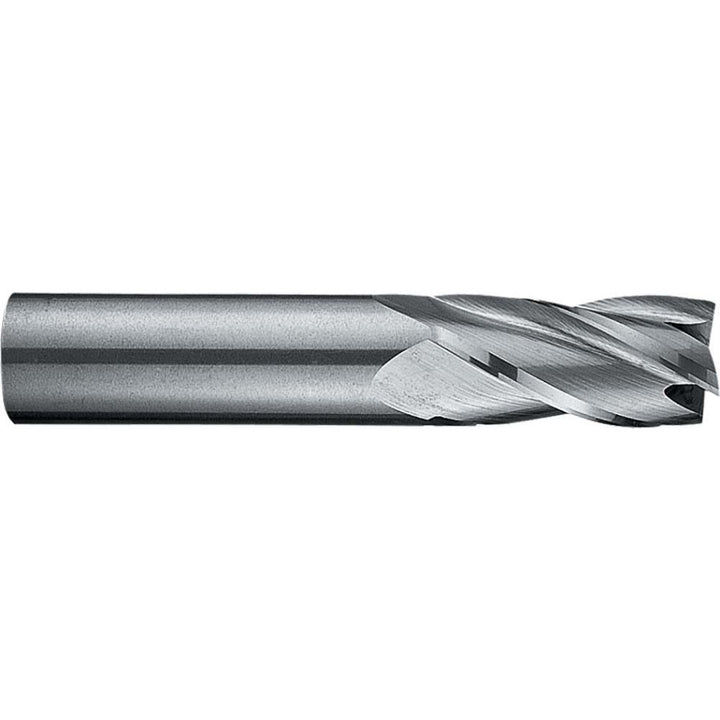

1/4" 4-Flute Solid Carbide Square End Mill - RobbJack TS-401-08
MFR# TS-401-08Series TS-401
$48.67
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
Description
The RobbJack TS-401-08 is a 1/4 4-flute Solid Carbide (Tuffy) square end mill. 1/2 length of cut, 2 overall length. Series TS-401.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2
Length typeStub
Material gradeTuffy
Mill diameter in1/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2
Overall length tolerance+0.060/-0.060 in
Shank diameter in1/4
Shank diameter tolerance-0.0001/-0.0002 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
