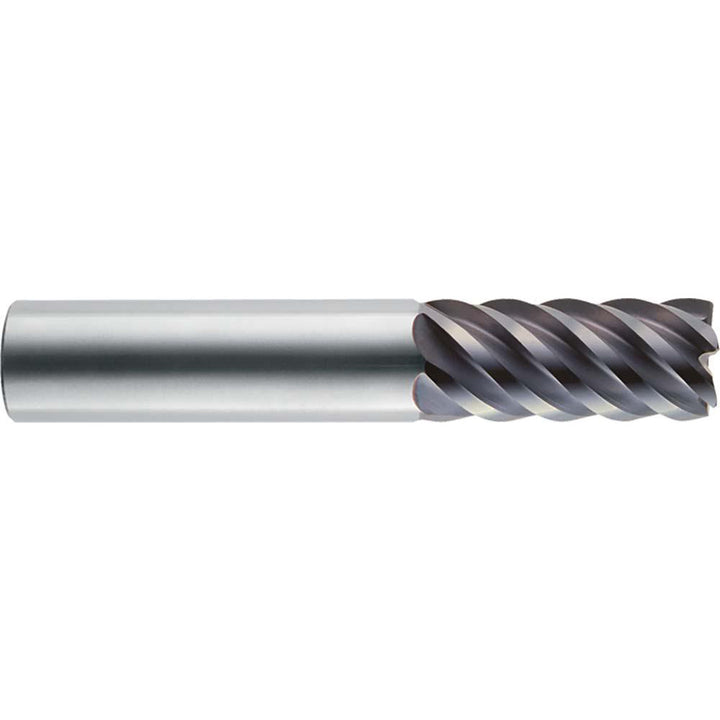

1/2" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - RobbJack XF-602-16-030

RobbJack

1/2" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - RobbJack XF-602-16-030

MFR# XF-602-16-030Series XF

$159.62List $174.40 Save 8%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes6
MaterialSolid Carbide
CoatingAlTiN

Description

The RobbJack XF-602-16-030 is a 1/2 6-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1 length of cut, 3 overall length. Series XF.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Helix styleHigh
Length of cut in1
Length typeStandard
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeMicrograin
Material removal typeFinishing
Mill diameter in1/2
Mill diameter tolerance0.0010 to 0.0020 in
Number of flutes6
Overall length in3
Overall length tolerance-0.0600 to 0.0600 in
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Shank diameter in1/2
Shank diameter tolerance0.0001 to 0.0002 in
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexNo
