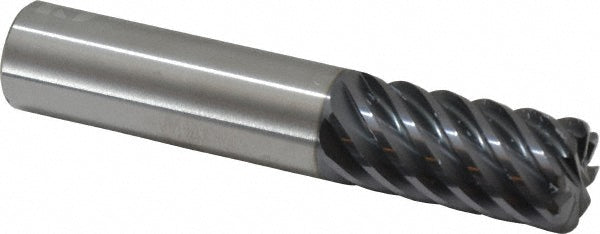

3/4" 8-Flute Solid Carbide Corner Radius End Mill, AlTiN - RobbJack XF-802-24-090

MFR# XF-802-24-090Series XF

$357.37List $388.53 Save 8%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes8

MaterialSolid Carbide

CoatingAlTiN

Description

The RobbJack XF-802-24-090 is a 3/4 8-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-1/2 length of cut, 4 overall length. Series XF.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0900

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleHigh

Length of cut in1-1/2

Length typeStandard

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Material gradeMicrograin

Material removal typeFinishing

Mill diameter in3/4

Mill diameter tolerance0.0010 to 0.0020 in

Number of flutes8

Overall length in4

Overall length tolerance-0.0600 to 0.0600 in

PitchSuper Close

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Shank diameter in3/4

Shank diameter tolerance0.0001 to 0.0002 in

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexNo
