Guhring

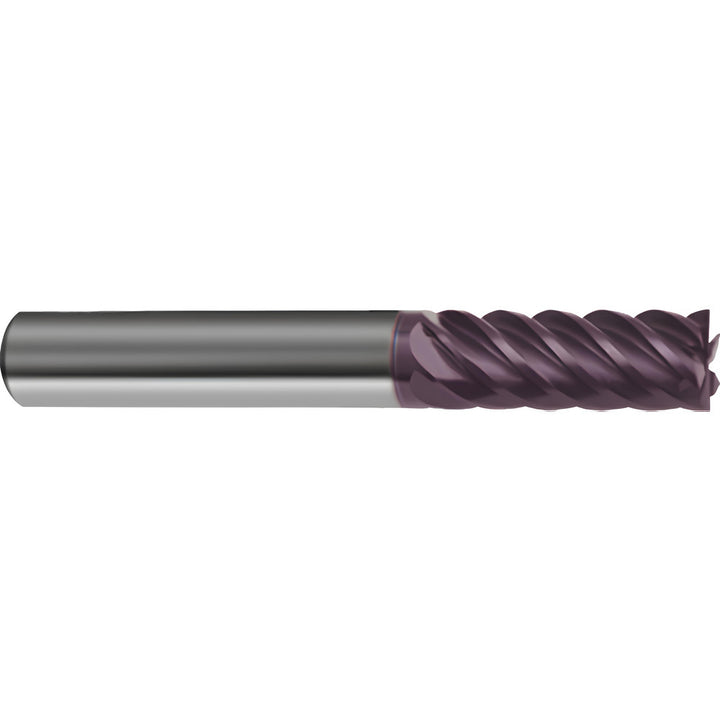

3/4" 8-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9031790190500

MFR# 9031790190500Series 3179

$204.45List $262.22 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes8

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9031790190500 is a 3/4 8-flute Solid Carbide (K40) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-1/2 length of cut, 4 overall length. Series 3179.

Specifications

CentercuttingNo

Chamfer angle45

Chamfer length0.0060

Chamfer width0.0060

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix styleHigh

Length of cut in1-1/2

Length typeStub

Manufacturers catalog number9031790190500

Material gradeK40

Material removal typeFinishing

Mill diameter in3/4

Mill diameter toleranceh10

Number of flutes8

Overall length in4

PitchSuper Close

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Reach length in1-1/2

Secondary workpiece materialNon-Ferrous Metal; Hard Material

Shank diameter in3/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
