Guhring

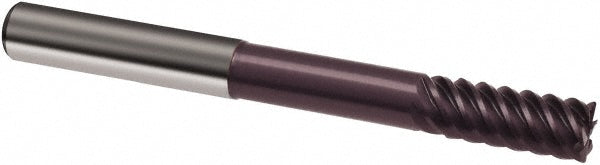

3/4" 8-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9031830190500

MFR# 9031830190500Series 3183

$352.56List $452.17 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes8

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9031830190500 is a 3/4 8-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for hard material. 1-1/2 length of cut, 5 overall length. Series 3183.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle55

Length of cut in1-1/2

Length typeLong

Material gradeProprietary

Mill diameter in3/4

Mill diameter toleranceh10

Number of flutes8

Overall length in5

Primary workpiece materialHard Material

Reach length3.0000

Secondary workpiece materialCast Iron

Shank diameter in3/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
