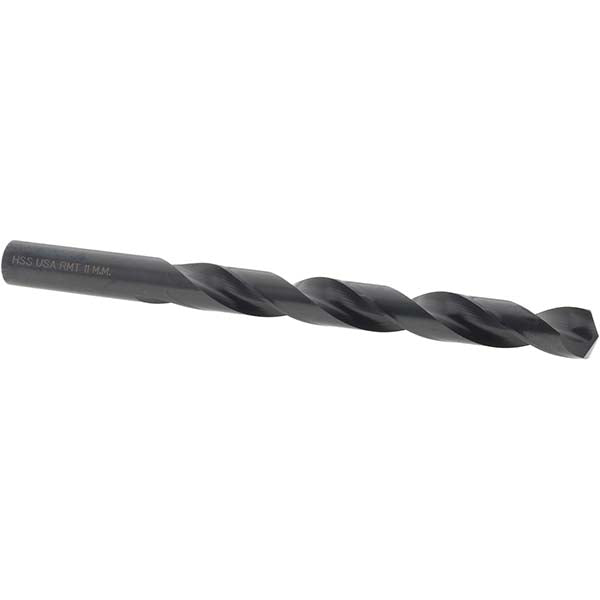

0.4331" HSS Drill Bit, Oxide, 135° point - Rocky Mountain Twist 95002444

Rocky Mountain Twist

0.4331" HSS Drill Bit, Oxide, 135° point - Rocky Mountain Twist 95002444

MFR# 95002444Series JH501

$11.43List $14.40 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 6 — minimum order 6

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingOxide

Description

The Rocky Mountain Twist 95002444 is a 0.4331" HSS drill bit with a Oxide finish, 135° point. Suited for high-temp alloy. 4-1/16 flute length, 5-1/2 overall length. Series JH501.

Specifications

Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size0.4331
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Flute length in4-1/16
Flute typeRegular Spiral
Number of flutes2
Overall length in5-1/2
Point typeSplit Point
Primary workpiece materialHigh-Temp Alloy
Shank diameter0.4331
Shank typeStraight
Spiral typeRegular
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
