Rocky Mountain Twist

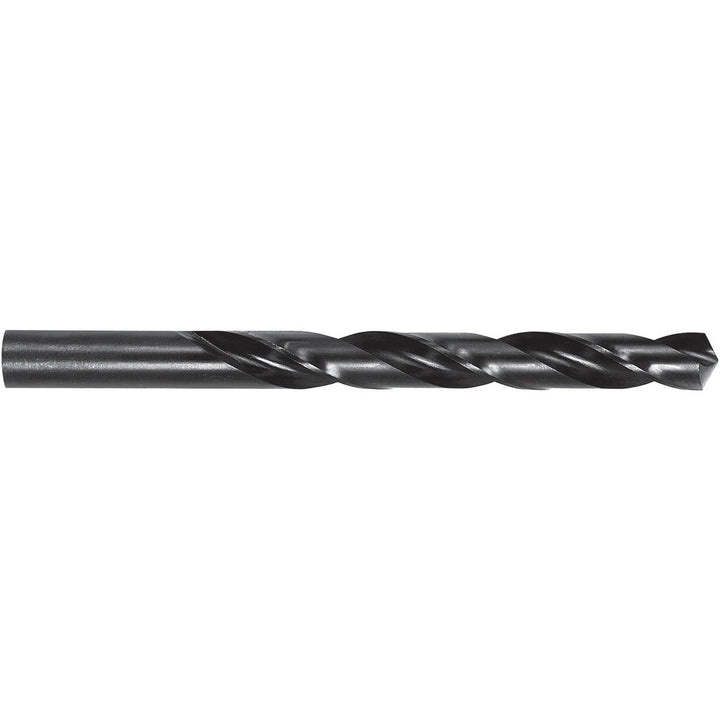

#5 HSS Drill Bit, Oxide, 118° point - Rocky Mountain Twist 95005605
MFR# 95005605Series JH801
$2.17List $2.74
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingOxide
Description
The Rocky Mountain Twist 95005605 is a #5 HSS drill bit with a Oxide finish, 118° point. Suited for aluminum & non-ferrous. 2-1/2 flute length, 3-3/4 overall length. Series JH801.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeGeneral Purpose
Drill bit materialHSS
Drill bit size0.2055
Drill bit size range0.2000 - 0.2500
Drill bit size wire#5
Drill point angle degrees118
Flute length in2-1/2
Flute typeRegular Spiral
Number of flutes2
Overall length in3-3/4
Point typeStandard
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter0.2055
Shank typeStraight
Spiral typeRegular
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
