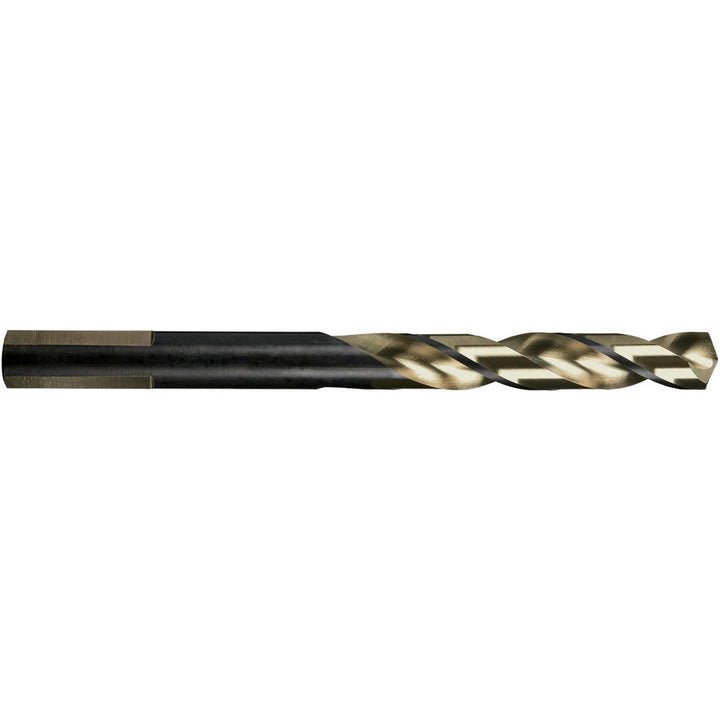

#10 HSS Drill Bit, Multi-layer, 137° point - Rocky Mountain Twist 95006109
MFR# 95006109Series JH522
$3.95List $4.97
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingMulti-layer
Description
The Rocky Mountain Twist 95006109 is a #10 HSS drill bit with a Multi-layer finish, 137° point. Suited for high-temp alloy. 1-7/8 flute length, 3-5/8 overall length. Series JH522.
Specifications
Coating finishMulti-layer
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size0.1935
Drill bit size range0.1500 - 0.2000
Drill bit size wire#10
Drill point angle degrees137
Flute length in1-7/8
Flute typeRegular Spiral
Number of flats3
Number of flutes2
Overall length in3-5/8
Point typeSplit Point
Primary workpiece materialHigh-Temp Alloy
Shank diameter0.1900
Shank typeStraight
Spiral typeRegular
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
