#20 Cobalt Screw Machine Drill Bit, Straw, 135° point - Rocky Mountain Twist 95006319

Rocky Mountain Twist

#20 Cobalt Screw Machine Drill Bit, Straw, 135° point - Rocky Mountain Twist 95006319

MFR# 95006319Series SC514

$3.83List $4.82 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 12 — minimum order 12

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingStraw

Description

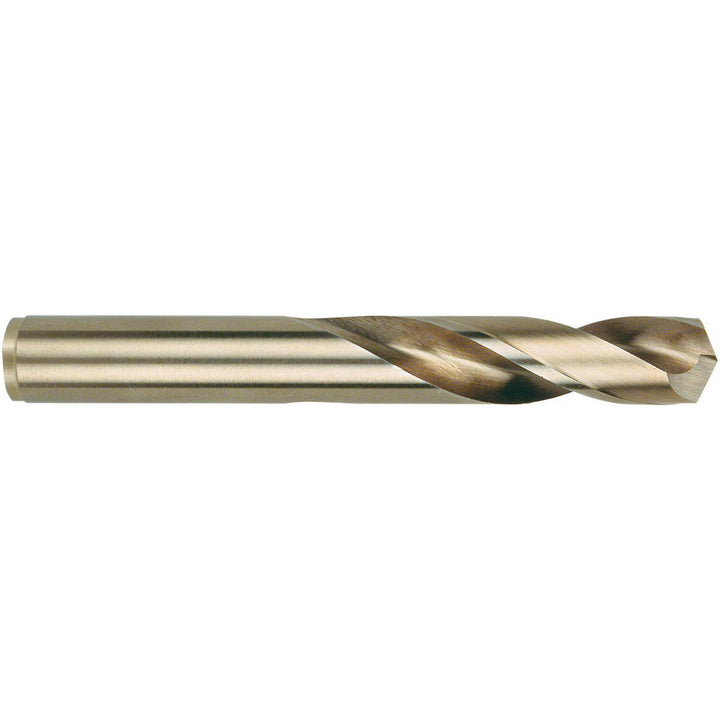

The Rocky Mountain Twist 95006319 is a #20 Cobalt Screw Machine drill bit with a Straw finish, 135° point. Suited for alloy, steel alloy. 1-1/16 flute length, 2-1/8 overall length. Series SC514.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit size0.1610
Drill bit size range0.1500 to 0.2000
Drill bit size wire#20
Drill length typeScrew Machine
Drill point angle135
Flute length in1-1/16
Flute typeRegular Spiral
Number of flutes2
Overall length in2-1/8
Point typeSplit Point
Primary workpiece materialAlloy; Steel Alloy
Shank diameter0.1610
Shank length in1-1/16
Shank typeStraight
Spiral typeRegular
StandardsNAS
Tool materialCobalt
Tool performanceHeavy-Duty
Web configurationTapered
Web thinningWeb-Thinned
