#40 Cobalt Screw Machine Drill Bit, Straw, 135° point - Rocky Mountain Twist 95006339

Rocky Mountain Twist

#40 Cobalt Screw Machine Drill Bit, Straw, 135° point - Rocky Mountain Twist 95006339

MFR# 95006339Series SC514

$2.82List $3.55 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 12 — minimum order 12

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingStraw

Description

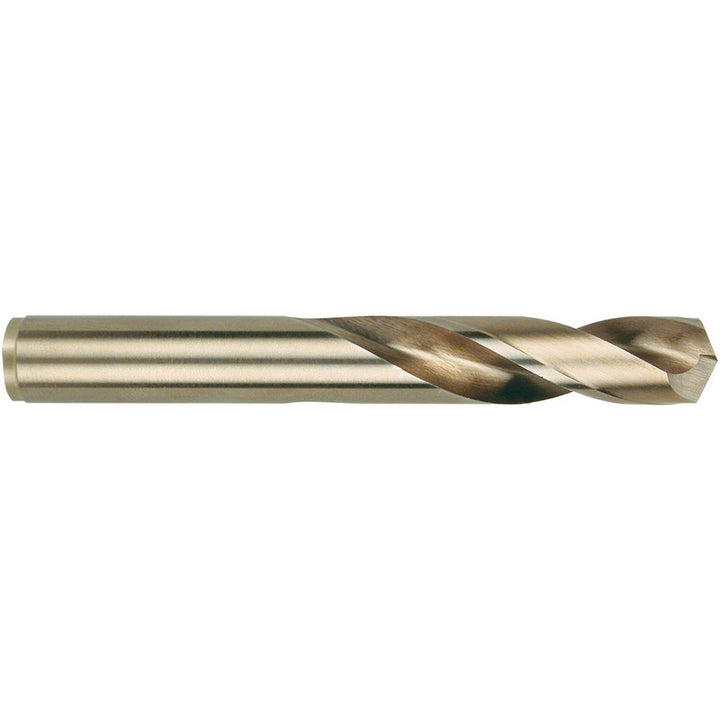

The Rocky Mountain Twist 95006339 is a #40 Cobalt Screw Machine drill bit with a Straw finish, 135° point. 13/16 flute length, 1-13/16 overall length. Series SC514.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeHeavy Duty
Drill bit size0.0980
Drill bit size range0.0000 to 0.1000
Drill bit size wire#40
Drill length typeScrew Machine
Drill point angle135
Flute length in13/16
Flute typeRegular Spiral
Number of flutes2
Overall length in1-13/16
Point typeSplit Point
Shank diameter0.0980
Shank typeStraight
Spiral typeRegular
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
