Rohm
Lathe Center - Rohm 42776
MFR# 42776
$454.70List $455.00
Save 0%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

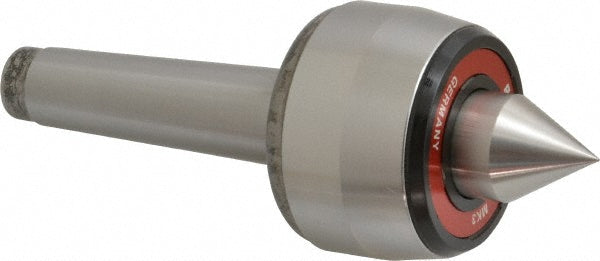

The Rohm 42776 is a steel lathe center.
Specifications
Accuracy0.005mm
ApplicationTurning; Grinding
Bearing typeTriple
Carbide tipped pointNo
FeaturesBody Hardened & Ground; Tip Angle 60
Gage line diameter (mm)23.83
Head diameter2.3620
Head length1.6610
Included angle60
Load capacity500.00lb
MaterialSteel
Maximum rpm5000
Maximum workpiece weight kg500.00
Maximum workpiece weight lb1100.00
Overall length6.3190
Point diameter0.9843
Point length1.2210
Point styleStandard
Point to gauge line (mm)79.50
Shank diameter0.9380
Shank typeTaper
Taper sizeMT3
