Lathe Center - Royal Products 10413

Royal Products

Lathe Center - Royal Products 10413

MFR# 10413

$940.05List $1,180.00 Save 20%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

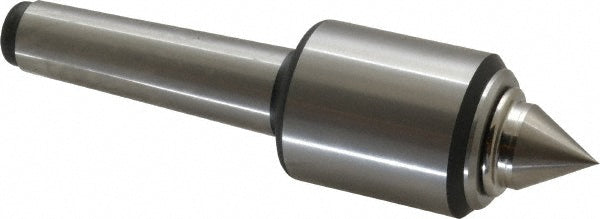

The Royal Products 10413 is a steel lathe center.

Specifications

Accuracy0in
ApplicationGrinding; Hard-Turning; Turning
Bearing typeQuad
Carbide tipped pointNo
FeaturesBody & Point are Hardened & Ground For Strength & Long Life; Exclusive Roto-Shield Coolant Slinger & Upgraded Seal; Precision; Preloaded Bearing Assembly Provides Exceptional Rigidity & Accuracy
Head diameter in1-3/4
Head length2.1200
Included angle60
Load capacity2155.00lb
MaterialSteel
Maximum rpm6000
Maximum workpiece weight lb1100.00
Point diameter in7/8
Point length1.0700
Point styleStandard
Radial load885lb
Shank length in3-7/16
Shank typeTaper
Taper sizeMT3
Thrust load lb1270.00
Tip diameter in3/8
