Royal Products

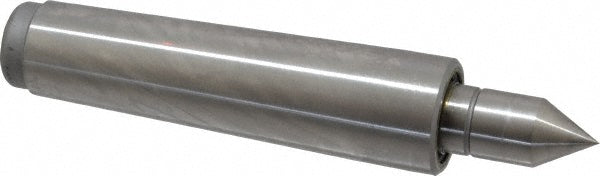

Lathe Center - Royal Products 10523
MFR# 10523
$904.19List $1,135.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Royal Products 10523 is a steel lathe center.
Specifications
Accuracy0.000500
Bearing typeTriple
Carbide tipped pointNo
Head diameter0.9380
Included angle60
Load capacity1255.00lb
MaterialSteel
Maximum rpm5000
Maximum workpiece weight lb940.00
Point diameter0.5500
Point length1.1563
Point styleStandard
Radial load940lb
Shank diameter0.9380
Shank length in3-11/16
Shank typeTaper
Spring loadedYes
Spring travel distance0.14
Taper sizeMT3
Thrust load lb315.00
