Royal Products
Lathe Center - Royal Products 10524
MFR# 10524
$1,019.67List $1,279.94
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

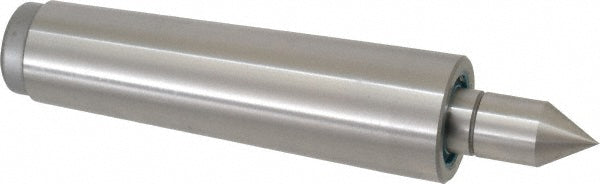

The Royal Products 10524 is a steel lathe center.
Specifications
Accuracy0.000500
Bearing typeTriple
Carbide tipped pointNo
Head diameter1.2310
Included angle60
Load capacity1835.00lb
MaterialSteel
Maximum rpm4500
Maximum workpiece weight lb1400.00
Point diameter in5/8
Point length in1-3/8
Point styleStandard
Radial load1400lb
Shank diameter1.2310
Shank length in4-9/16
Shank typeTaper
Spring loadedYes
Spring travel distance0.18
Taper sizeMT4
Thrust load lb435.00
