Royal Products

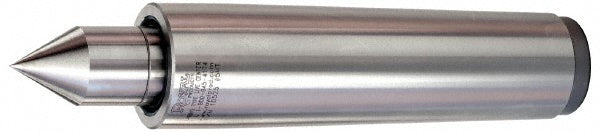

Lathe Center - Royal Products 10525
MFR# 10525
$1,585.33List $1,990.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Royal Products 10525 is a steel lathe center.
Specifications
Accuracy0.000500
Bearing typeTriple
Carbide tipped pointNo
Head diameter1.7480
Included angle60
Load capacity3125.00lb
MaterialSteel
Maximum rpm4500
Maximum workpiece weight lb2340.00
Point diameter1.0938
Point length in2
Point styleStandard
Radial load2340lb
Shank diameter1.7480
Shank length in6-1/16
Shank typeTaper
Spring loadedYes
Spring travel distance0.19
Taper sizeMT5
Thrust load lb785.00
