Royal Products

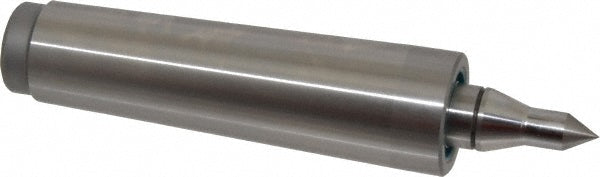

Lathe Center - Royal Products 10534
MFR# 10534
$1,159.37List $1,430.00
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Royal Products 10534 is a steel lathe center.
Specifications
Accuracy0.000500
Bearing typeTriple
Carbide tipped pointNo
Gage line diameter1.2310
Head diameter1.2310
Included angle60
Load capacity1015.00lb
MaterialSteel
Maximum rpm4500
Maximum workpiece weight lb580.00
Point diameter in5/8
Point length in1-3/8
Point styleLong
Radial load580lb
Shank length4.5600
Shank typeTaper
Spring loadedYes
Spring travel distance0.18
Taper sizeMT4
Thrust load lb435.00
Tip diameter in3/8
