Royal Products

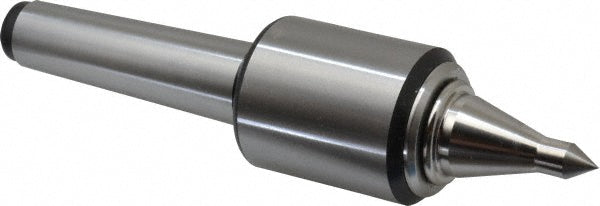

Lathe Center - Royal Products 10683
MFR# 10683
$1,214.89List $1,525.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Royal Products 10683 is a steel lathe center.
Specifications
Accuracy0in
ApplicationTurning
Bearing typeTriple
Carbide tipped pointNo
FeaturesBody & Point are Hardened & Ground; Lubricated with Lightweight Spindle; Precision; Preloaded Bearing Assembly
Head diameter1.7000
Head length2.1200
Included angle60
Load capacity830.00lb
MaterialSteel
Maximum rpm12000
Maximum workpiece weight lb1210.00
Point diameter in7/8
Point length in1-3/4
Point styleLong
Radial load180lb
Shank length in3-7/16
Shank typeTaper
Taper sizeMT3
Thrust load lb650.00
Tip diameter in3/8
