Royal Products

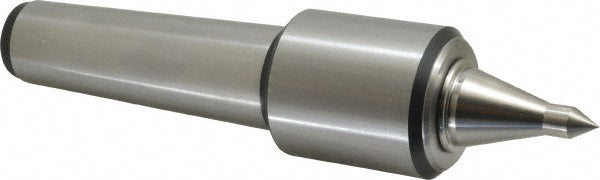

Lathe Center - Royal Products 10685
MFR# 10685
$1,497.70List $1,880.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Royal Products 10685 is a steel lathe center.
Specifications
Accuracy0in
ApplicationTurning
Bearing typeTriple
Carbide tipped pointNo
FeaturesBody & Point are Hardened & Ground; Lubricated with Lightweight Spindle; Precision; Preloaded Bearing Assembly
Head diameter2.4500
Head length2.7800
Included angle60
Load capacity1905.00lb
MaterialSteel
Maximum rpm12000
Maximum workpiece weight lb525.00
Point diameter in1-1/4
Point length2.3500
Point styleLong
Radial load252lb
Shank length in5-9/16
Shank typeTaper
Taper sizeMT5
Thrust load lb1380.00
Tip diameter in1/2
