Royal Products

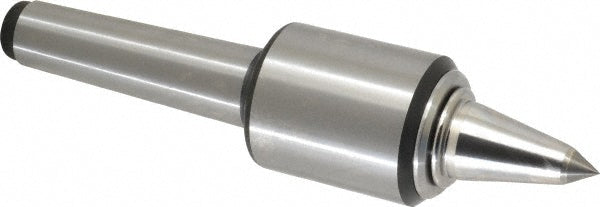

Lathe Center - Royal Products 10693
MFR# 10693
$1,282.60List $1,609.99
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Royal Products 10693 is a steel lathe center.
Specifications
Accuracy0in
ApplicationTurning
Bearing typeTriple
Carbide tipped pointYes
FeaturesBody & Point are Hardened & Ground; Lubricated with Lightweight Spindle; Precision; Preloaded Bearing Assembly
Head diameter1.7000
Head length2.1200
Included angle60
Load capacity830.00lb
MaterialSteel
Maximum rpm12000
Maximum workpiece weight lb750.00
Point diameter in7/8
Point length in1-3/4
Point styleLong
Radial load180lb
Shank length in3-7/16
Shank typeTaper
Taper sizeMT3
Thrust load lb650.00
Tip diameter in3/8
