Royal Products

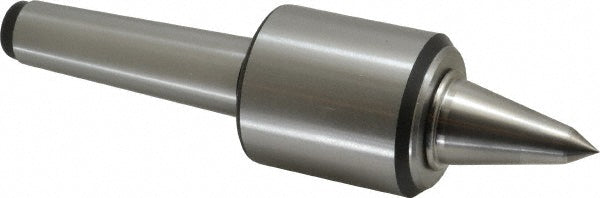

Lathe Center - Royal Products 10694
MFR# 10694
$1,561.39List $1,959.94
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Royal Products 10694 is a steel lathe center.
Specifications
Accuracy0in
ApplicationTurning
Bearing typeTriple
Carbide tipped pointYes
FeaturesBody & Point are Hardened & Ground; Lubricated with Lightweight Spindle; Precision; Preloaded Bearing Assembly
Head diameter2.4500
Head length2.7800
Included angle60
Load capacity1905.00lb
MaterialSteel
Maximum rpm12000
Maximum workpiece weight lb2200.00
Point diameter in1-1/4
Point length2.3500
Point styleLong
Radial load525lb
Shank length in4-7/16
Shank typeTaper
Taper sizeMT4
Thrust load lb1380.00
Tip diameter in1/2
