Royal Products

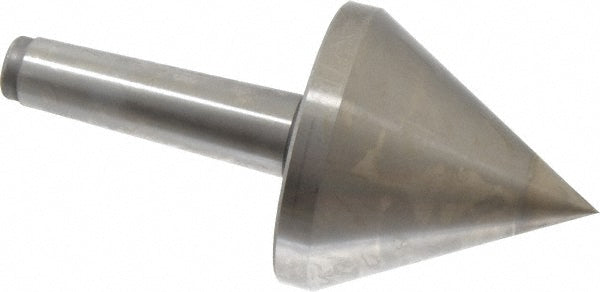

Lathe Center - Royal Products 10704
MFR# 10704
$1,422.03List $1,785.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Royal Products 10704 is a steel lathe center.
Specifications
Accuracy0in
ApplicationTurning
Bearing typeDouble
Carbide tipped pointNo
FeaturesTwo Matched Angular Contact Bearings Provide Good Thrust & Radial Load Ratings
Head diameter in4-5/32
Included angle60
Load capacity3180.00lb
MaterialSteel
Maximum rpm4500
Maximum workpiece weight lb630.00
Point diameter in1-1/4
Point length4.1250
Point stylePipe Nose
Radial load630lb
Shank length4.0600
Shank typeTaper
Taper sizeMT4
Thrust load lb2550.00
