Sandvik Coromant

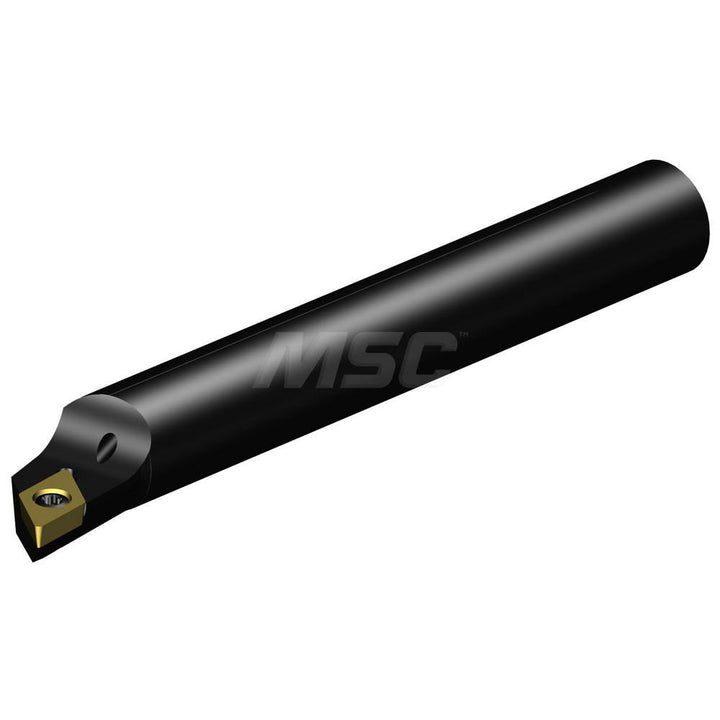

Indexable Boring - Sandvik Coromant 5721437
MFR# 5721437Cat# A12M-SDXCR 3-RSeries CoroTurn 107
$252.11List $267.84
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5721437 indexable boring. Series CoroTurn 107.
Specifications
Back of bar to cutting edge5.9055
Center to cutting edge0.4724
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityDCMT 32.52
Insert holding methodScrew Clamping
Insert inscribed circle in3/8
Insert thickness in5/32
Lead angle0.00
Manufacturers catalog numberA12M-SDXCR 3-R
Minimum bore diameter0.9843
Minimum bore diameter using diamond insert cartridge0.9843
Minimum bore diameter using triangle insert cartridge0.9843
Multi use applicationBoring; Profiling; Turning
Multi use toolYes
Neck diameter in3/4
Number of inserts used on toolholder1
Overall length5.9055
RakeNeutral
Rake angle0.00
Shank diameter in3/4
Toolholder styleA-SDXC
Tool materialSteel
