Sandvik Coromant

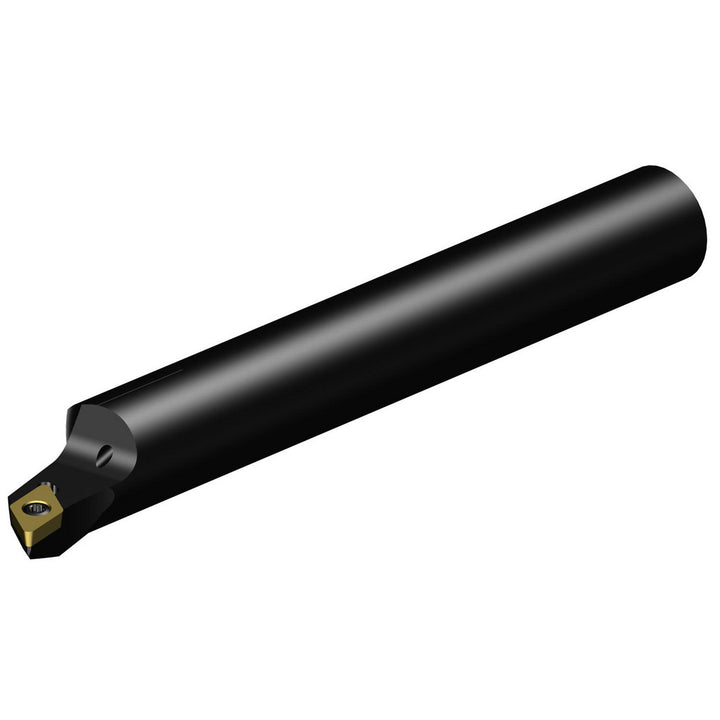

Indexable Boring - Sandvik Coromant 5721580
MFR# 5721580Cat# A10K-SDXCR 2-RSeries CoroTurn 107
$214.79List $219.24
Save 2%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5721580 indexable boring. Series CoroTurn 107.
Specifications
Back of bar to cutting edge4.9213
Center to cutting edge0.3543
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityDCMT 21.51
Insert holding methodScrew Clamping
Insert inscribed circle in1/4
Insert thickness in3/32
Lead angle3
Manufacturers catalog numberA10K-SDXCR 2-R
Minimum bore diameter0.7874
Minimum bore diameter using diamond insert cartridge0.7874
Minimum bore diameter using triangle insert cartridge0.7874
Multi use applicationBoring; Profiling; Turning
Multi use toolYes
Neck diameter in5/8
Number of inserts used on toolholder1
Overall length4.9213
RakePositive
Rake angle3.00
Shank diameter in5/8
Toolholder styleA-SDXC
Tool materialSteel
