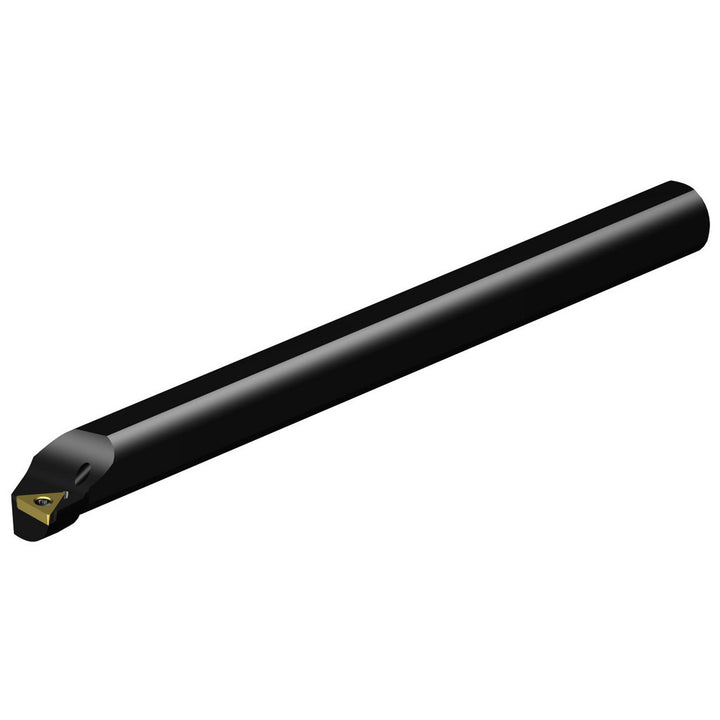

Indexable Boring - Sandvik Coromant 5721800
MFR# 5721800Cat# A16T-STFCR 3Series CoroTurn 107
$289.73List $307.80
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5721800 indexable boring. Series CoroTurn 107.
Specifications
Back of bar to cutting edge12.0000
Center to cutting edge0.6400
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityTCMT 32.52
Insert holding methodScrew Clamping
Insert inscribed circle in1/4
Insert thickness in5/32
Lead angle0.00
Manufacturers catalog numberA16T-STFCR 3
Minimum bore diameter1.2008
Minimum bore diameter using diamond insert cartridge1.2008
Minimum bore diameter using triangle insert cartridge1.2008
Multi use applicationBoring; Turning
Multi use toolYes
Neck diameter in1
Number of inserts used on toolholder1
Overall length in12
RakeNeutral
Rake angle0.00
Shank diameter in1
Toolholder styleA-STFC
Tool materialSteel
