Sandvik Coromant

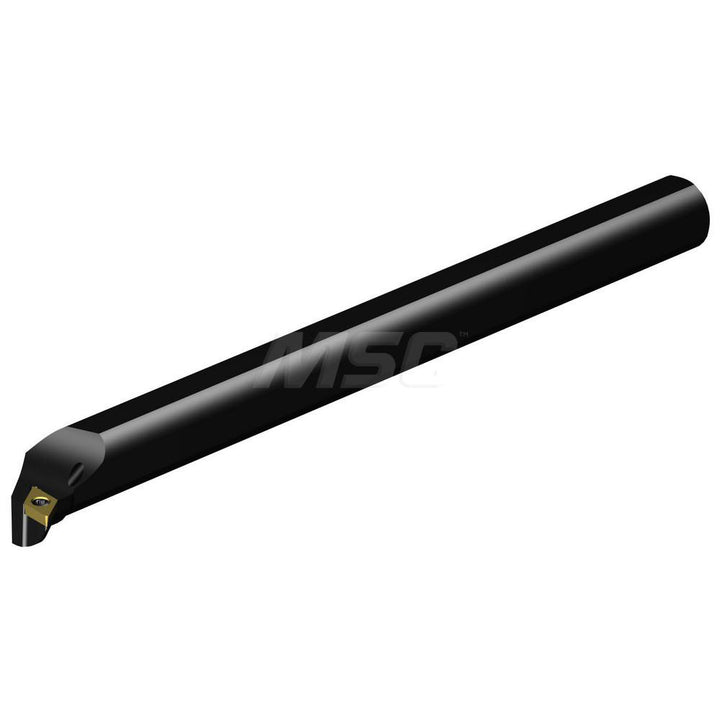

Indexable Boring - Sandvik Coromant 5721821
MFR# 5721821Cat# A16T-SDUCR 3Series CoroTurn 107
$309.34List $322.92
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5721821 indexable boring. Series CoroTurn 107.
Specifications
Back of bar to cutting edge12.0000
Center to cutting edge in3/4
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityDCMT 32.52
Insert holding methodScrew Clamping
Insert inscribed circle in3/8
Insert thickness in5/32
Lead angle0.00
Manufacturers catalog numberA16T-SDUCR 3
Minimum bore diameter1.2992
Minimum bore diameter using diamond insert cartridge1.2992
Minimum bore diameter using triangle insert cartridge1.2992
Multi use applicationBoring; Profiling; Turning
Multi use toolYes
Neck diameter in1
Number of inserts used on toolholder1
Overall length in12
RakeNeutral
Rake angle0.00
Shank diameter in1
Toolholder styleA-SDUC
Tool materialSteel
