Sandvik Coromant

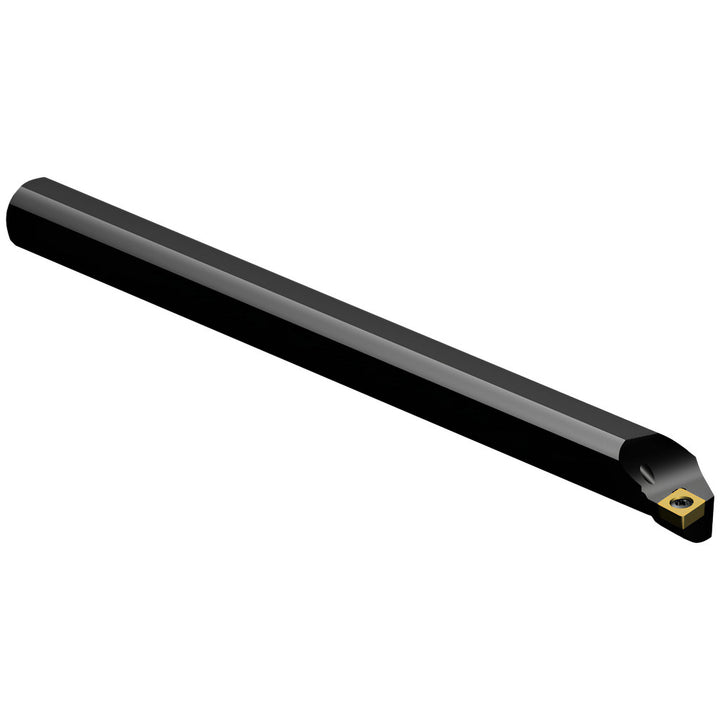

Indexable Boring - Sandvik Coromant 5721976
MFR# 5721976Cat# A20S-SCLCL 09Series CoroTurn 107
$252.11List $267.84
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5721976 indexable boring. Series CoroTurn 107.
Specifications
Back of bar to cutting edge9.8425
Center to cutting edge0.5118
Coolant throughYes
Hand of holderLeft Hand
Insert compatibilityCCMT 32.52
Insert holding methodScrew Clamping
Insert inscribed circle in3/8
Insert thickness in5/32
Lead angle0
Manufacturers catalog numberA20S-SCLCL 09
Minimum bore diameter0.9843
Minimum bore diameter using diamond insert cartridge0.9843
Minimum bore diameter using triangle insert cartridge0.9843
Multi use toolYes
Neck diameter0.7874
Number of inserts used on toolholder1
Overall length9.8425
RakeNeutral
Rake angle0.00
Shank diameter (mm)20.00
Toolholder styleA-SCLC
Tool materialSteel
