Sandvik Coromant

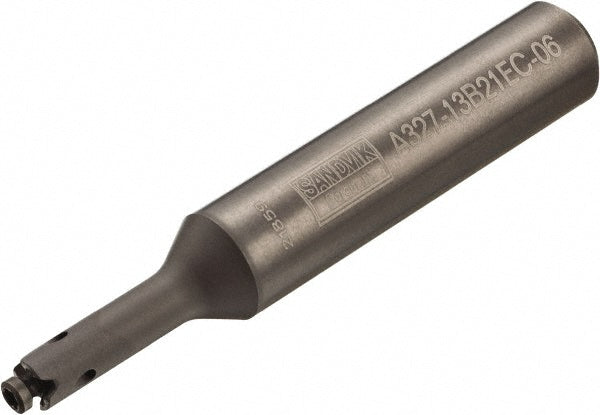

Milling Tip Inserts, Holders & Kits - Sandvik Coromant 5722516
MFR# 5722516Series CoroMill 327
$457.47List $486.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5722516 milling tip inserts, holders & kits. Series CoroMill 327.
Specifications
Coolant throughNo
Effective length (mm)38.51
Head length1.5162
Maximum diameter0.2362
Neck diameter0.2362
Neck thread size06
Nose diameter0.2362
Overall length3.7992
Projection1.5162
Shank shapeRound
Shank typeWeldon Flat
Thread size connection to tip06
Toolholder styleA327-xxB
Tool materialSteel
Weldon flatYes
