Sandvik Coromant

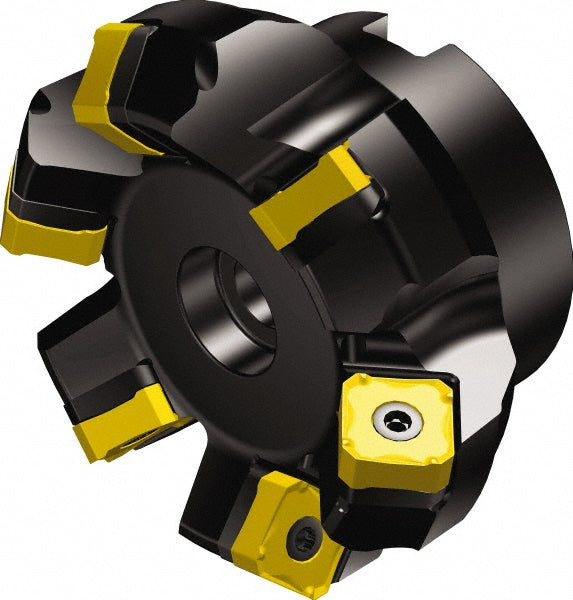

Indexable Milling Cutters - Sandvik Coromant 5722690
MFR# 5722690Series CoroMill 345
$1,096.61List $1,165.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Sandvik Coromant 5722690 indexable milling cutters. Series CoroMill 345.
Specifications
Arbor hole diameter in1
Compatible insert size code345R-13T5
Complete insert compatibility345R-13T5
Coolant throughYes
Cutter styleA345
Cutting directionRight Hand
Cutting edge length0.2362
Hub diameter in1
Insert holding methodClamp; Screw
Keyway width0.3839
Lead angle45
Maximum body diameter3.0000
Maximum cutting diameter in3
Maximum depth of cut0.2362
Number of cutter inserts6
Number of flutes6
Overall height1.7716
Pitch typeClose
RakeNegative
Toolholder materialSteel
