Sandvik Coromant

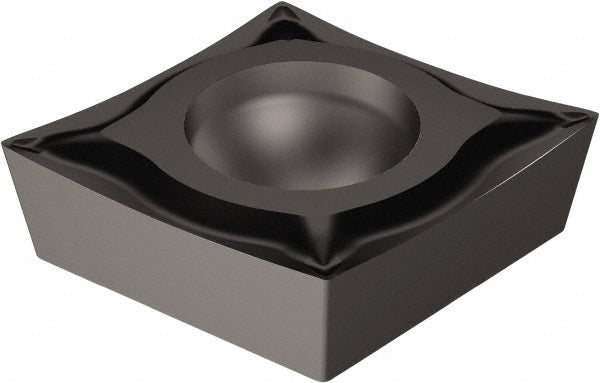

CCET 06 02 01-UM 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5723084
MFR# 5723084ISO/ANSI# CCET060201
$36.08List $45.47
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
Grade1105
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5723084 is a CCET 06 02 01-UM 1105 carbide indexable insert, grade 1105, TiAlN coated.
Specifications
Ansi insert codeCCET21.503
Ansi size code21.503
Chip breakerUM
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiAlN
Corner radius0.0039
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert holding methodScrew
Insert length in1/4
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.503
Insert styleCCET
Insert thickness in3/32
Iso codeCCET 06 02 01-UM 1105
Iso insert codeCCET060201
Iso size code060201
Length range0.0000 - 0.3000
Manufacturer grade1105
Relief angle7
Side clearancePositive
Tolerance codeE
