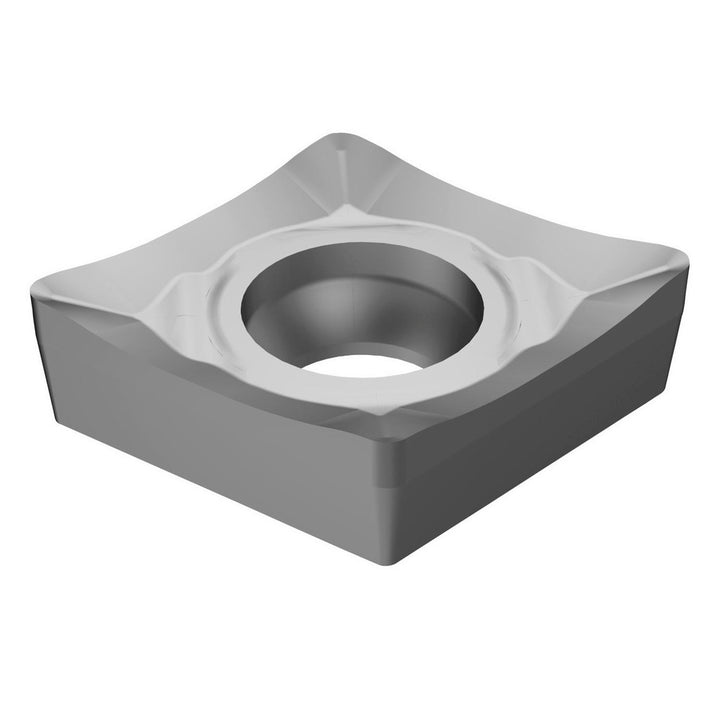

CCGX 12 04 08-AL H10 Carbide Insert, Grade H10 - Sandvik Coromant 5723197
MFR# 5723197ISO/ANSI# CCGX 12 04 08-AL H10Series CoroTurn 107
$22.77List $29.21
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeH10
MaterialCarbide
Description
The Sandvik Coromant 5723197 is a CCGX 12 04 08-AL H10 carbide indexable insert, grade H10. Suited for non-ferrous metal.
Specifications
Chip breakerAL
Clearance codeC
Corner radius in1/32
Hole diameter0.2165
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.4762
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCCGX
Insert thickness in3/16
Iso codeCCGX 12 04 08-AL H10
Length range0.4000 - 0.5000
Manufacturer gradeH10
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
