Sandvik Coromant

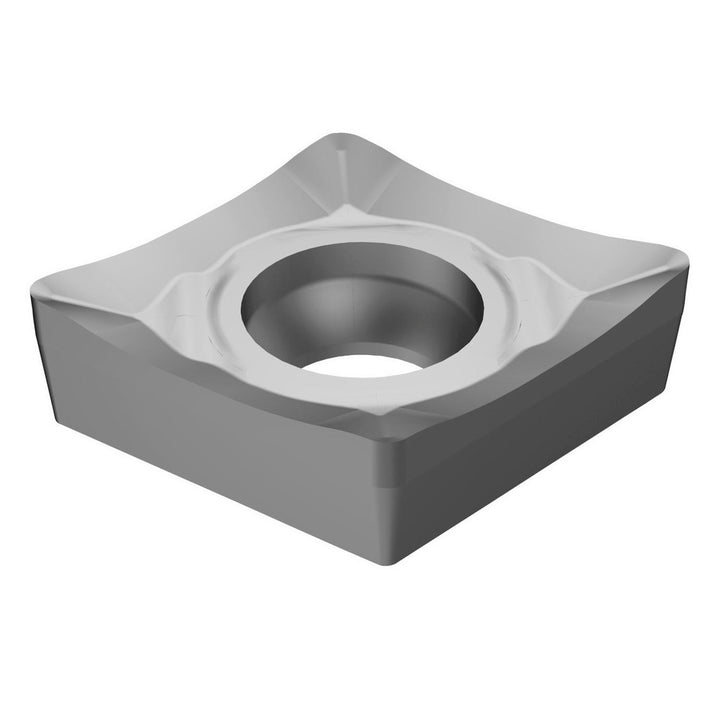

CCGX 06 02 02-AL H10 Carbide Insert, Grade H10 - Sandvik Coromant 5723227
MFR# 5723227ISO/ANSI# CCGX060202Series CoroTurn 107
$20.88List $26.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeH10
MaterialCarbide
Description
The Sandvik Coromant 5723227 is a CCGX 06 02 02-AL H10 carbide indexable insert, grade H10. Suited for non-ferrous metal.
Specifications
Ansi insert codeCCGX21.50
Ansi size code21.50
Chip breakerAL
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Corner radius0.0079
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2460
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.50
Insert styleCCGX
Insert thickness in3/32
Iso codeCCGX 06 02 02-AL H10
Iso insert codeCCGX060202
Iso size code060202
Length range0.0000 - 0.3000
Manufacturer gradeH10
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Side clearancePositive
Tolerance codeG
Wiper edgeNo
