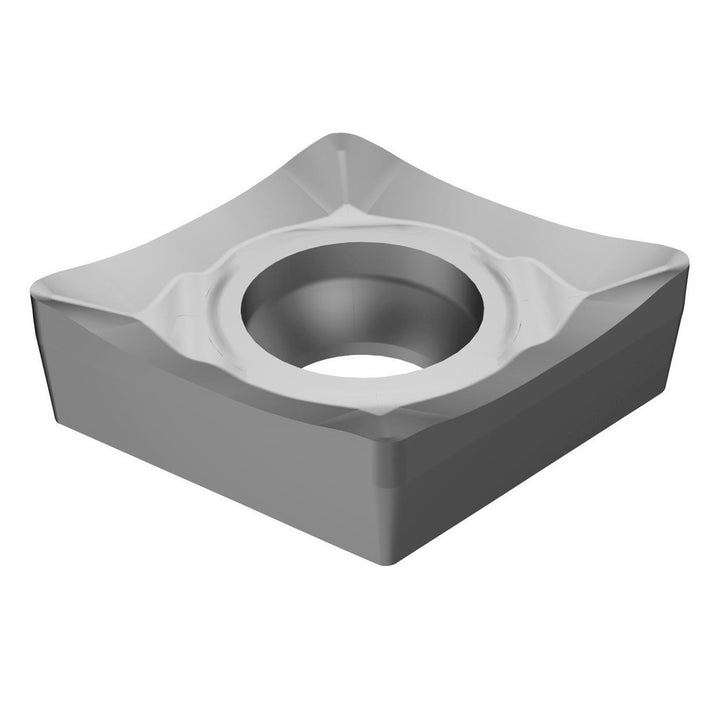

CCGX 06 02 04-AL H10 Carbide Insert, Grade H10 - Sandvik Coromant 5723233
MFR# 5723233ISO/ANSI# CCGX 06 02 04-AL H10Series CoroTurn 107
$18.90List $24.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeH10
MaterialCarbide
Description
The Sandvik Coromant 5723233 is a CCGX 06 02 04-AL H10 carbide indexable insert, grade H10. Suited for non-ferrous metal.
Specifications
Chip breakerAL
Clearance codeC
Corner radius in1/64
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2381
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleCCGX
Insert thickness in3/32
Iso codeCCGX 06 02 04-AL H10
Length range0.0000 - 0.3000
Manufacturer gradeH10
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
