Sandvik Coromant

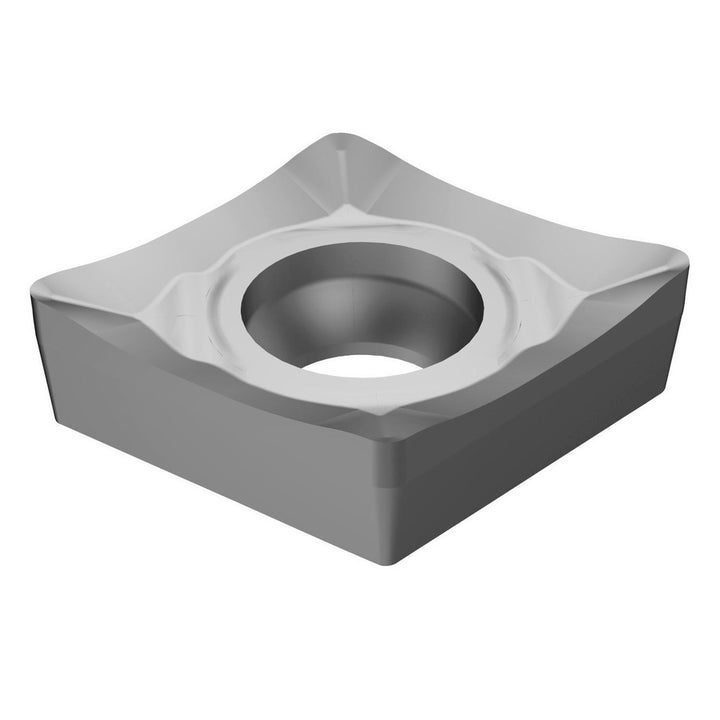

CCGX 09 T3 08-AL H10 Carbide Insert, Grade H10 - Sandvik Coromant 5723245
MFR# 5723245ISO/ANSI# CCGX 09 T3 08-AL H10Series CoroTurn 107
$20.20List $25.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeH10
MaterialCarbide
Description
The Sandvik Coromant 5723245 is a CCGX 09 T3 08-AL H10 carbide indexable insert, grade H10. Suited for non-ferrous metal.
Specifications
Chip breakerAL
Clearance codeC
Corner radius in1/32
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3493
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleCCGX
Insert thickness in5/32
Iso codeCCGX 09 T3 08-AL H10
Length range0.3000 - 0.4000
Manufacturer gradeH10
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
