Sandvik Coromant

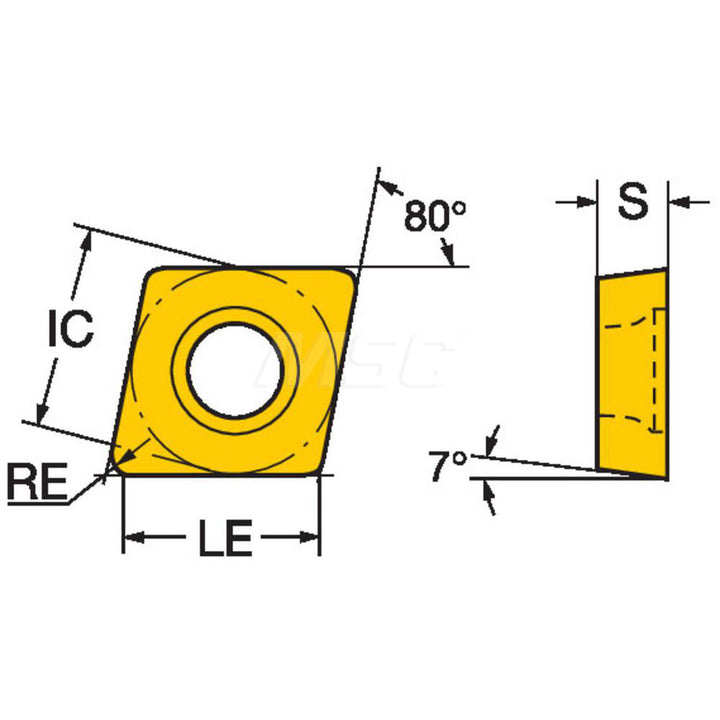

CCMT 09 T3 04-PM 1525 Carbide Insert, Grade 1525, TiCN - Sandvik Coromant 5723609
MFR# 5723609ISO/ANSI# CCMT 09 T3 04-PM 1525Series CoroTurn 107
$13.72List $17.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1525
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5723609 is a CCMT 09 T3 04-PM 1525 carbide indexable insert, grade 1525, TiCN coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3650
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 09 T3 04-PM 1525
Length range0.3000 - 0.4000
Manufacturer grade1525
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
