Sandvik Coromant

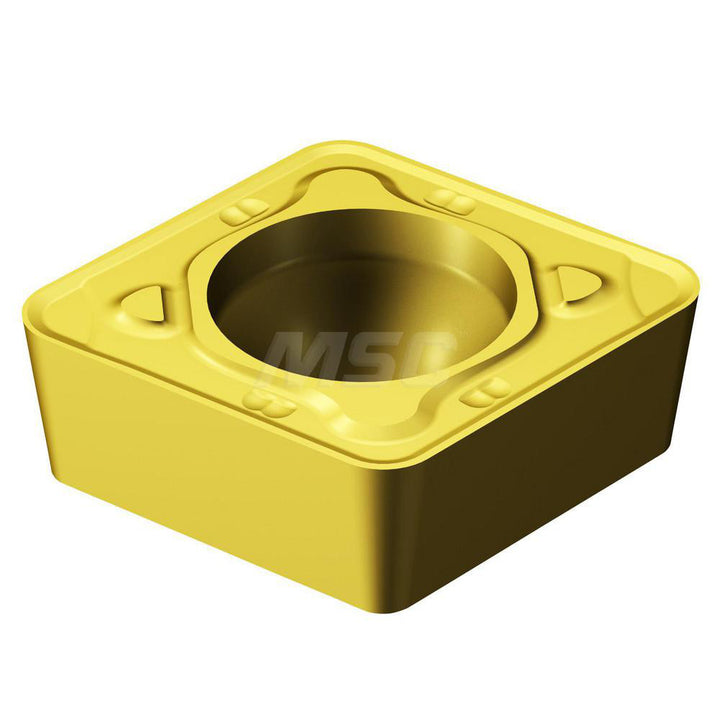

CCMT 09 T3 08-MR 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5723613
MFR# 5723613ISO/ANSI# CCMT 09 T3 08-MR 2025Series CoroTurn 107
$14.85List $19.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5723613 is a CCMT 09 T3 08-MR 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMR
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3493
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 09 T3 08-MR 2025
Length range0.3000 - 0.4000
Manufacturer grade2025
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeNo
