Sandvik Coromant

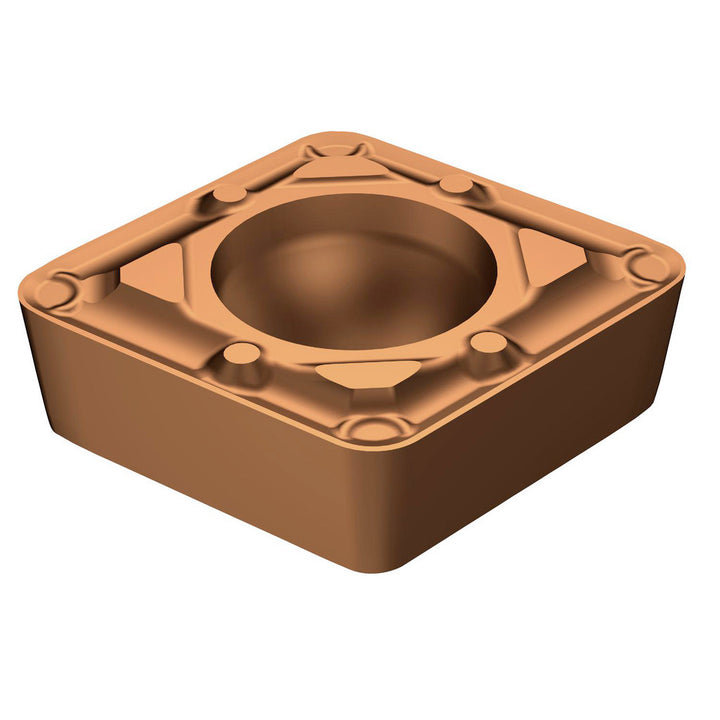

CCMT060204WF1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5723642
MFR# 5723642ISO/ANSI# CCMT060204WF1115Series CoroTurn 107
$15.32List $19.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5723642 is a CCMT060204WF1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerWF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204WF1115
Length range0.0000 - 0.3000
Manufacturers catalog number5723642
Manufacturer grade1115
Maximum depth of cut0.2382
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeYes
